← Honda

BeAT FI

BeAT FI

Year 2012 – 2014

Model Code: K25A

VIN: MH1JFD2

Engine No: JFD2E

619 registered parts

Honda BeAT FI Gen 1 (K25A) is the first generation of the fuel-injected BeAT scooter, introduced as a more fuel-efficient and environmentally friendly successor to the carbureted model. It features Honda's PGM-FI (Programmed Fuel Injection) system, offering improved fuel economy, smoother throttle response, and lower emissions while maintaining the lightweight and practical design that made the BeAT popular for daily commuting.

🔧 Parts Diagram

Engine 17 diagrams · 261 parts

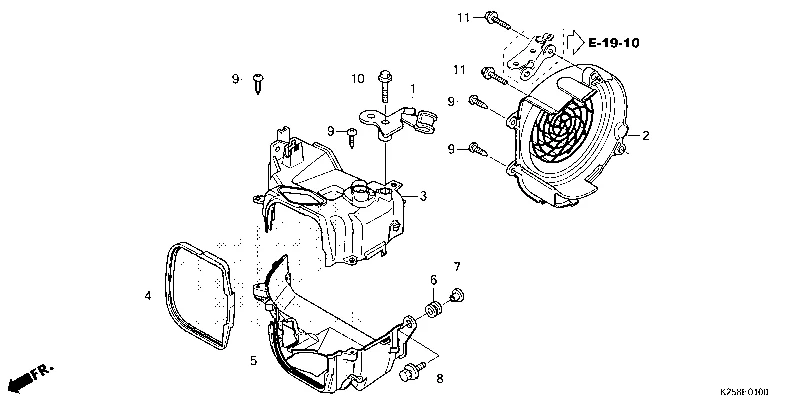

E-1 SHROUD/FAN COVER

E-1 SHROUD/FAN COVER

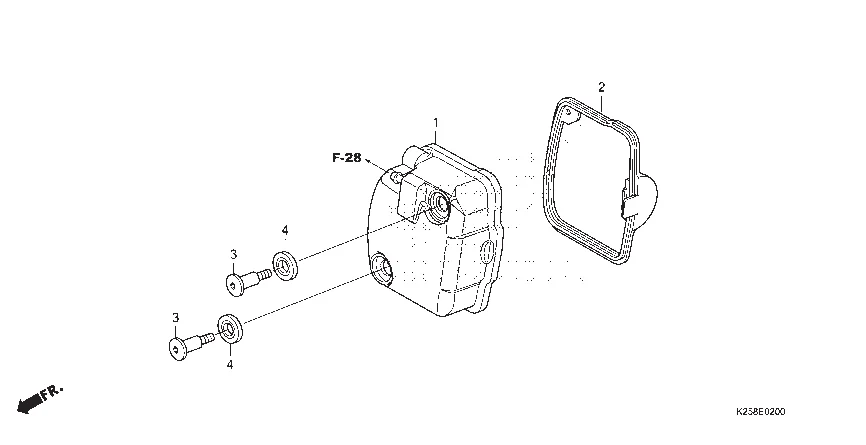

E-2 CYLINDER HEAD COVER

E-2 CYLINDER HEAD COVER

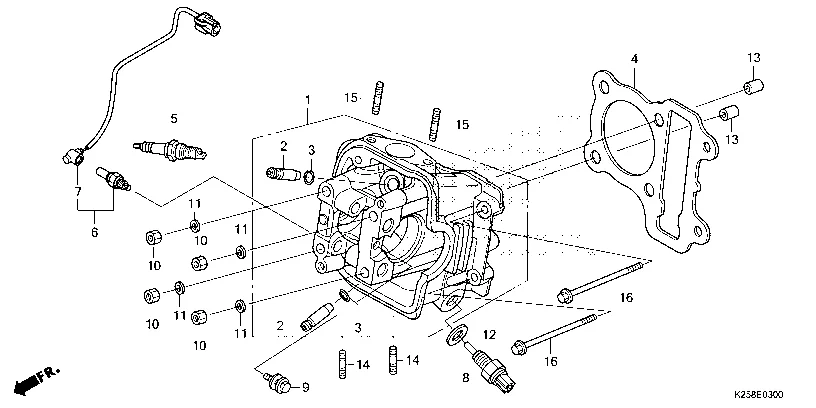

E-3 CYLINDER HEAD

E-3 CYLINDER HEAD

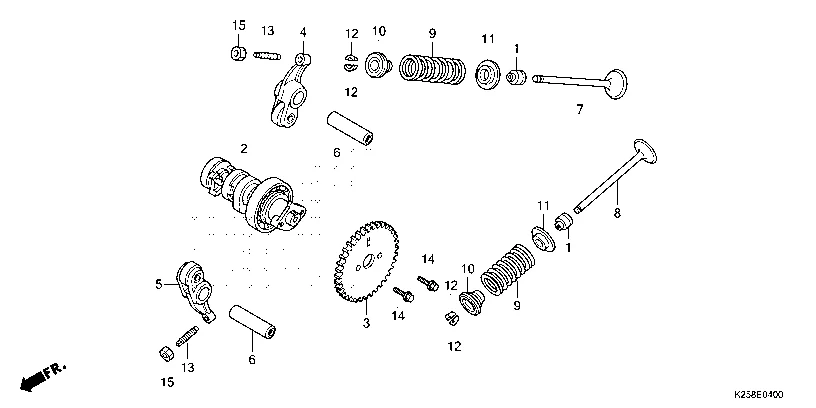

E-4 CAMSHAFT/VALVE

E-4 CAMSHAFT/VALVE

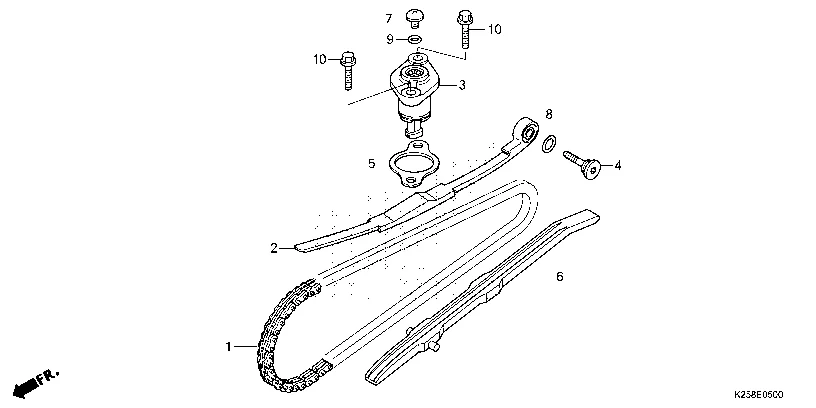

E-5 CAM CHAIN/TENSIONER

E-5 CAM CHAIN/TENSIONER

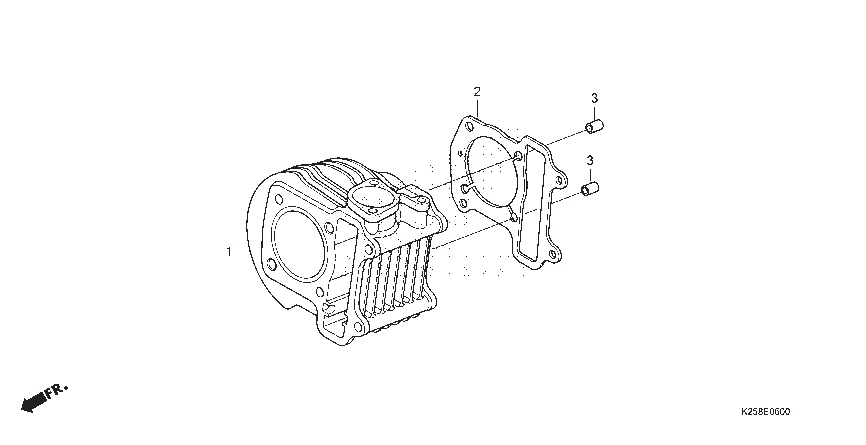

E-6 CYLINDER

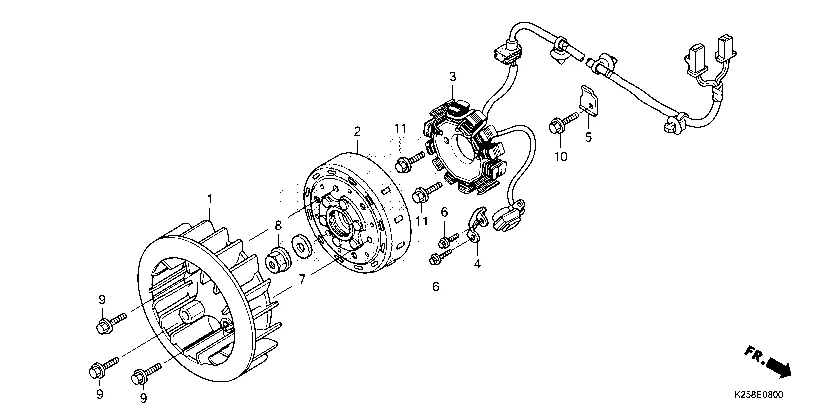

E-8 GENERATOR

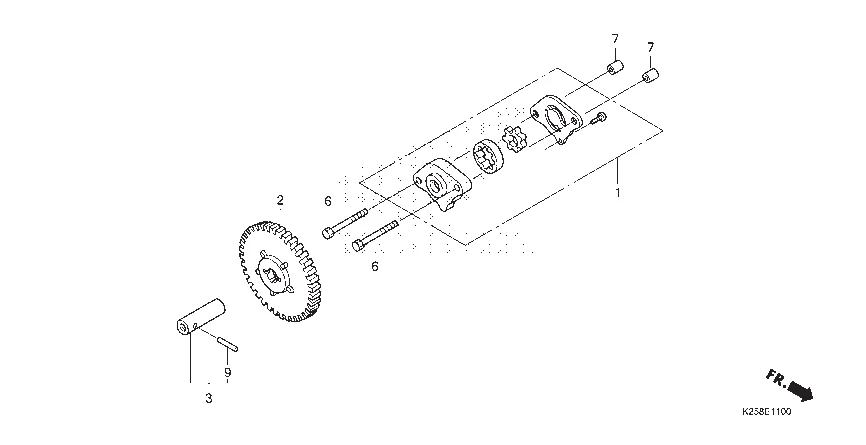

E-11 OIL PUMP

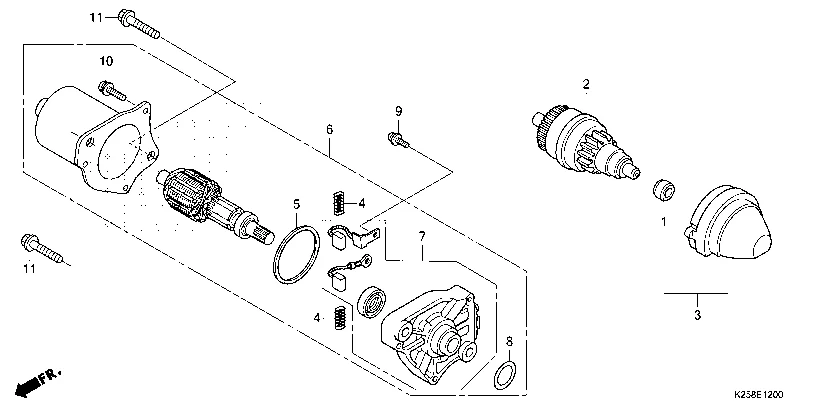

E-12 STARTER MOTOR

E-12 STARTER MOTOR

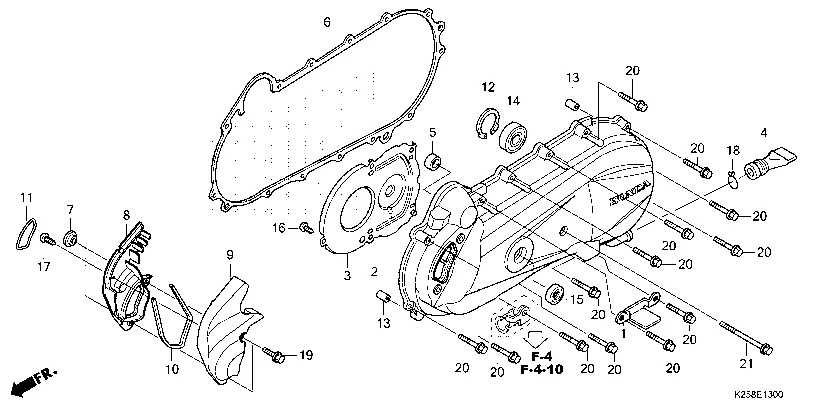

E-13 LEFT CRANKCASE COVER

E-13 LEFT CRANKCASE COVER

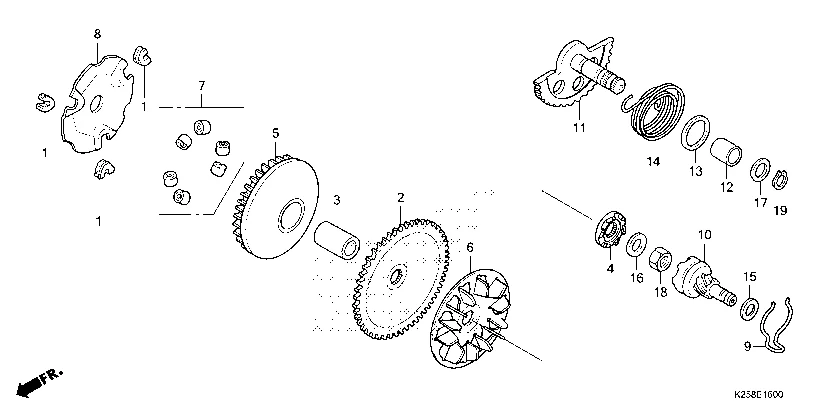

E-16 DRIVE FACE

E-16 DRIVE FACE

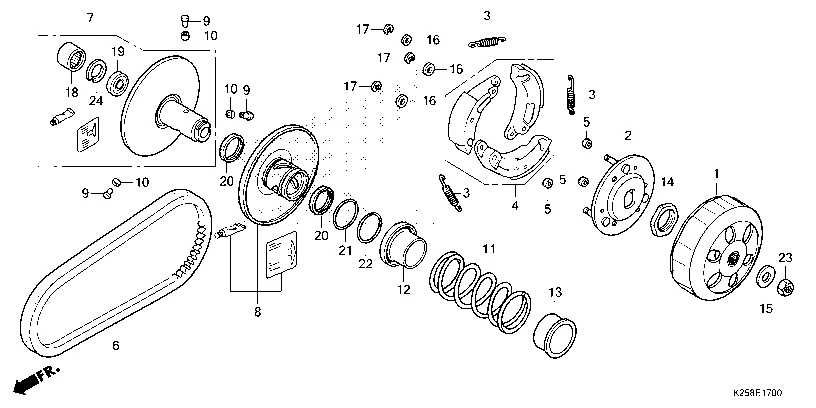

E-17 DRIVEN FACE

E-17 DRIVEN FACE

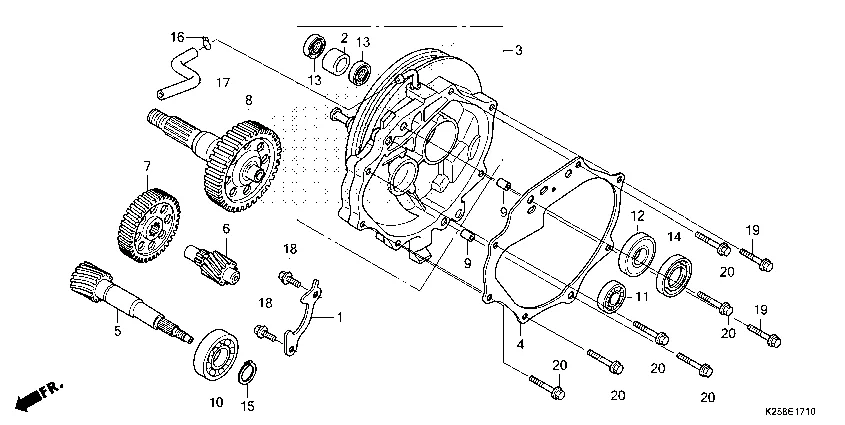

E-17-10 TRANSMISSION

E-17-10 TRANSMISSION

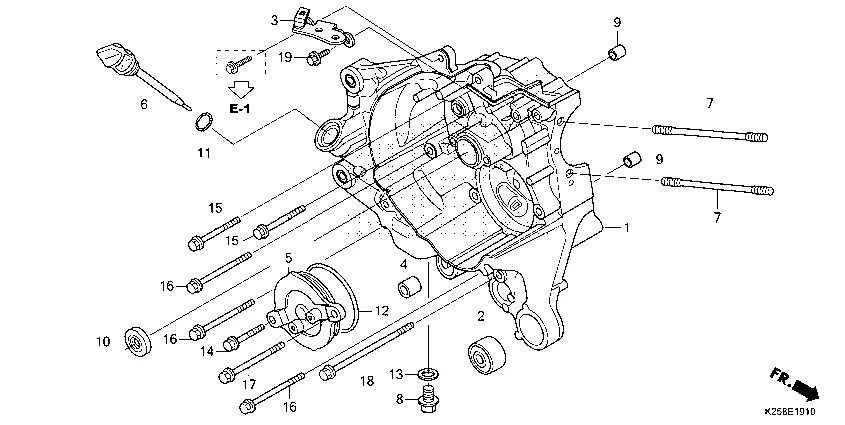

E-19-10 RIGHT CRANKCASE

E-19-10 RIGHT CRANKCASE

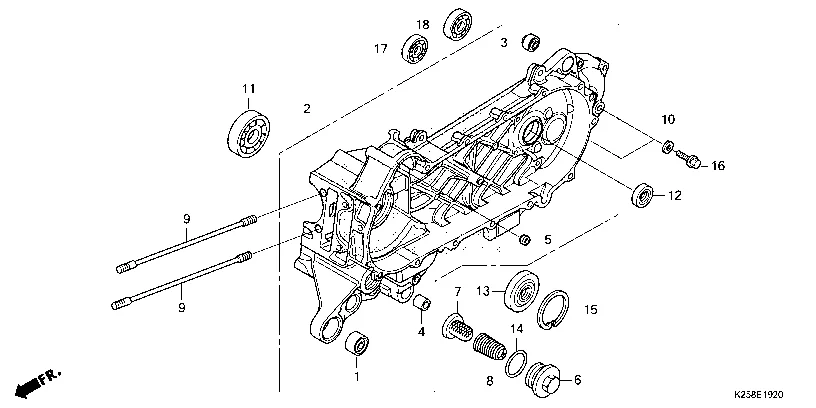

E-19-20 E-19-20

E-19-20 E-19-20

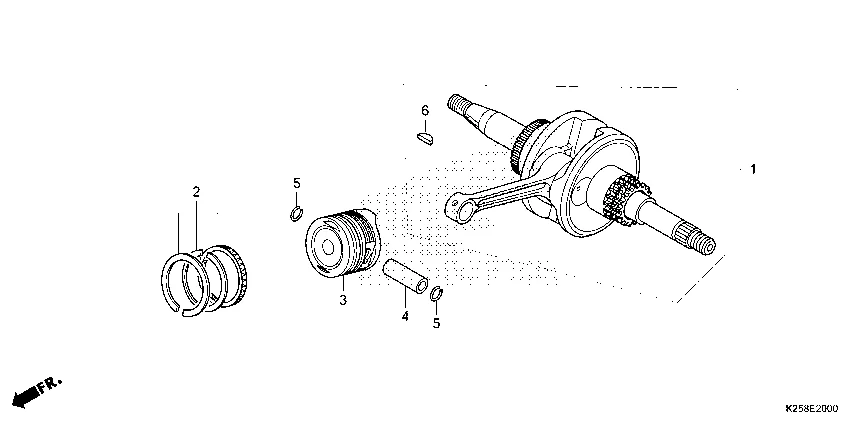

E-20 CRANKSHAFT/PISTON

E-20 CRANKSHAFT/PISTON

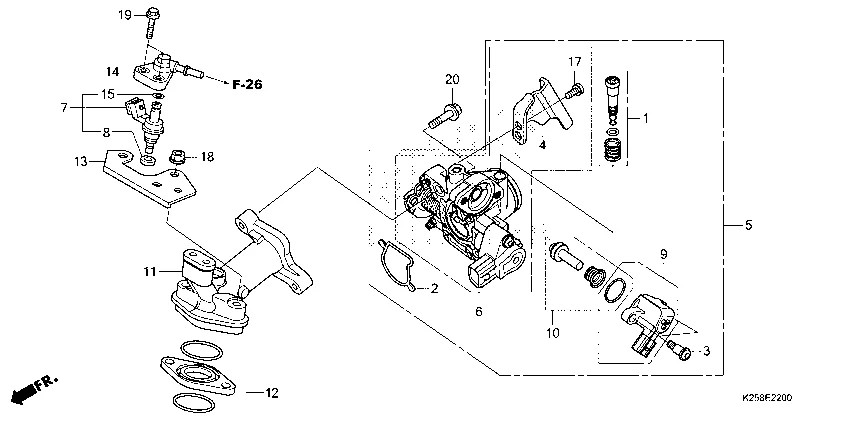

E-22 THROTTLE BODY

E-22 THROTTLE BODY

Frame 35 diagrams · 491 parts

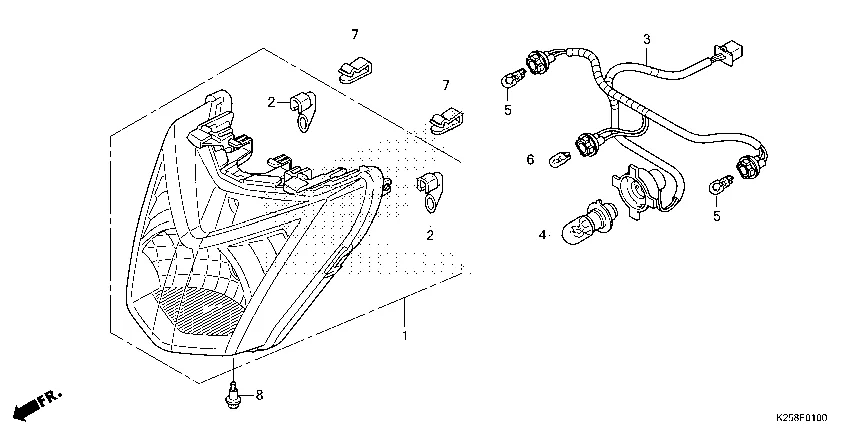

F-1 HEADLIGHT

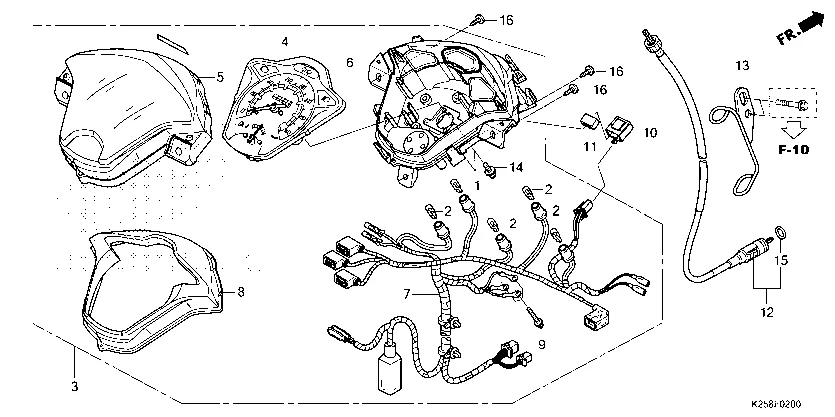

F-2 METER

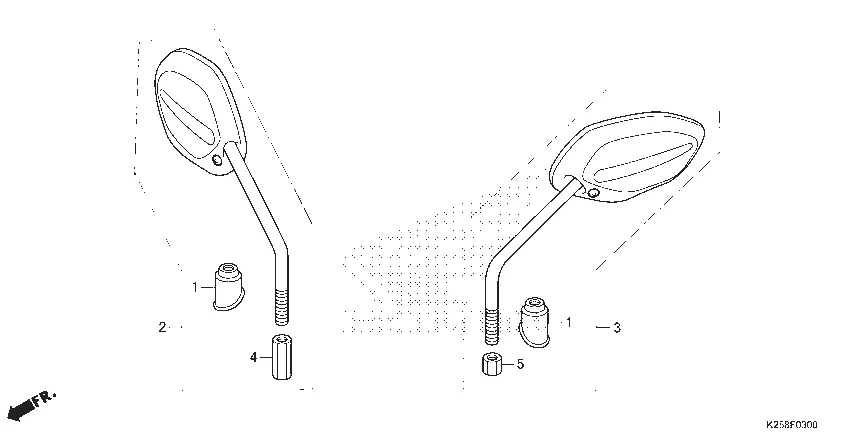

F-3 MIRROR

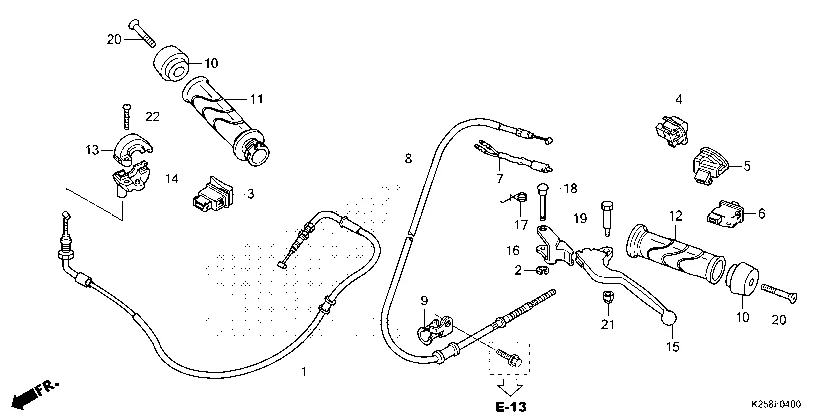

F-4 HANDLE LEVER/SWITCH/CABLE

F-4 HANDLE LEVER/SWITCH/CABLE

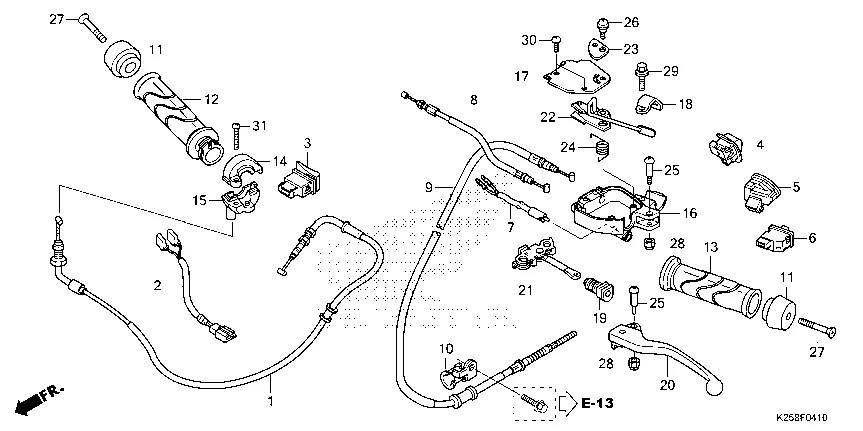

F-4-10 HANDLE LEVER/SWITCH/CABLE(CBS)

F-4-10 HANDLE LEVER/SWITCH/CABLE(CBS)

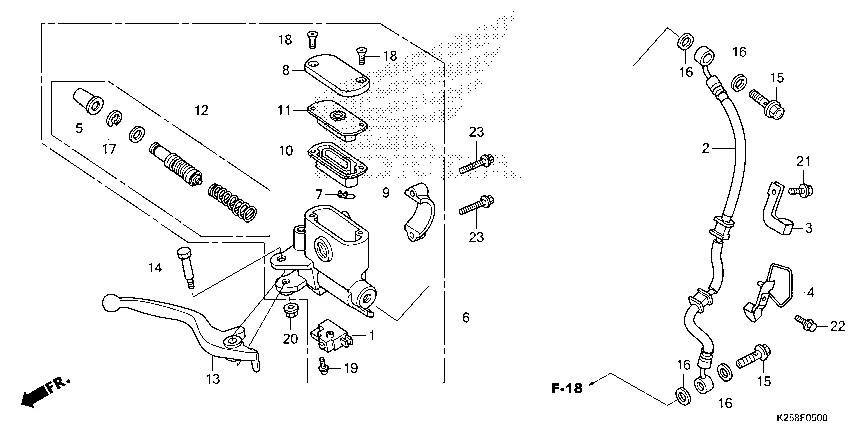

F-5 FRONT BRAKE MASTER CYLINDER

F-5 FRONT BRAKE MASTER CYLINDER

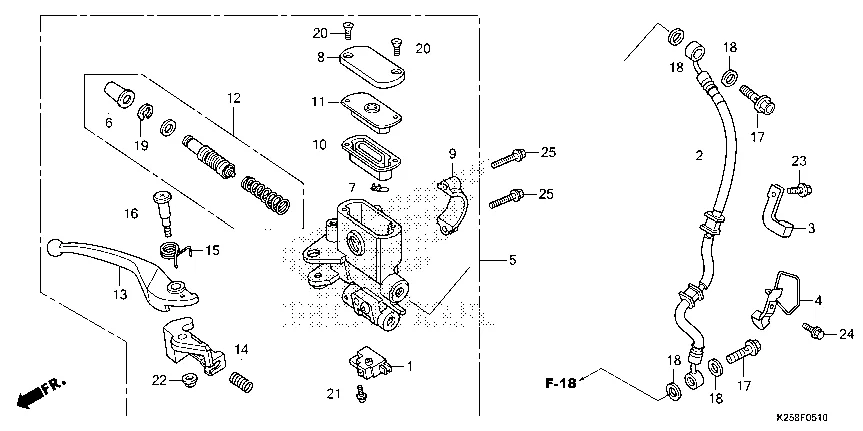

F-5-10 FRONT BRAKE MASTER CYLINDER(CBS)

F-5-10 FRONT BRAKE MASTER CYLINDER(CBS)

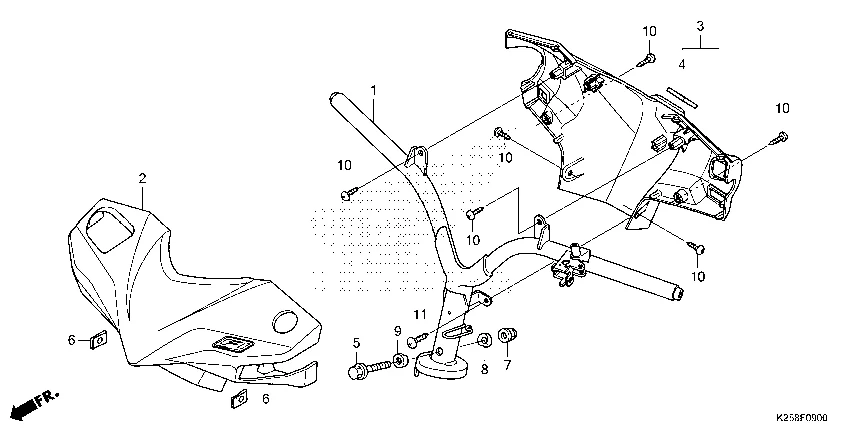

F-9 HANDLE PIPE/HANDLE COVER

F-9 HANDLE PIPE/HANDLE COVER

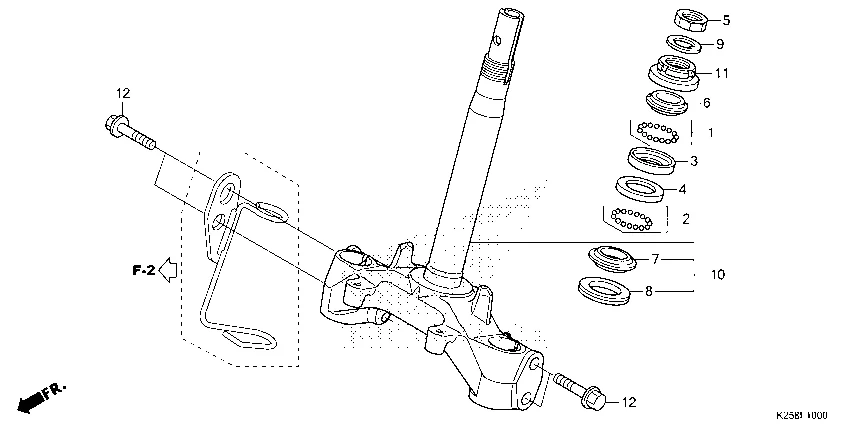

F-10 STEERING STEM

F-10 STEERING STEM

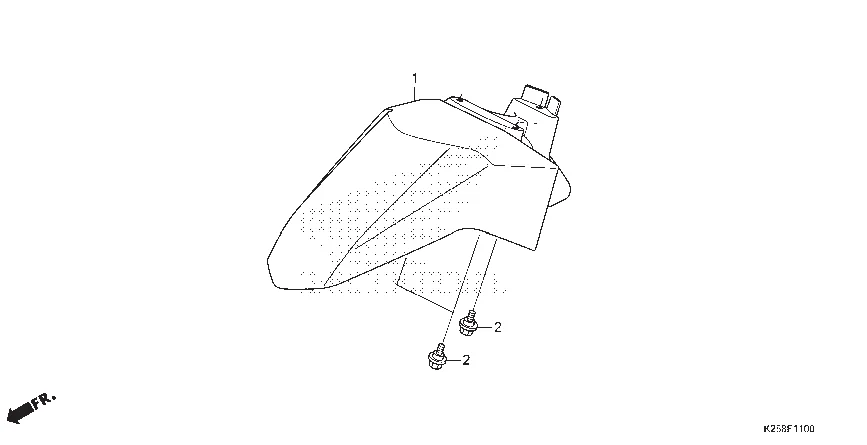

F-11 FRONT FENDER

F-11 FRONT FENDER

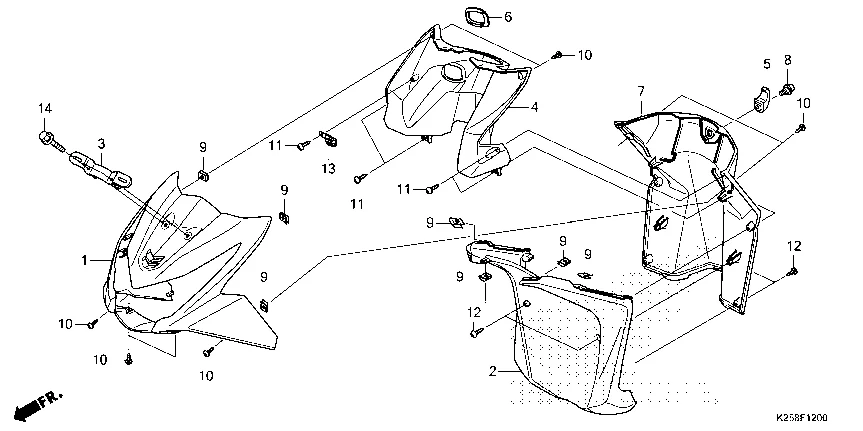

F-12 FRONT COVER/INNER COVER

F-12 FRONT COVER/INNER COVER

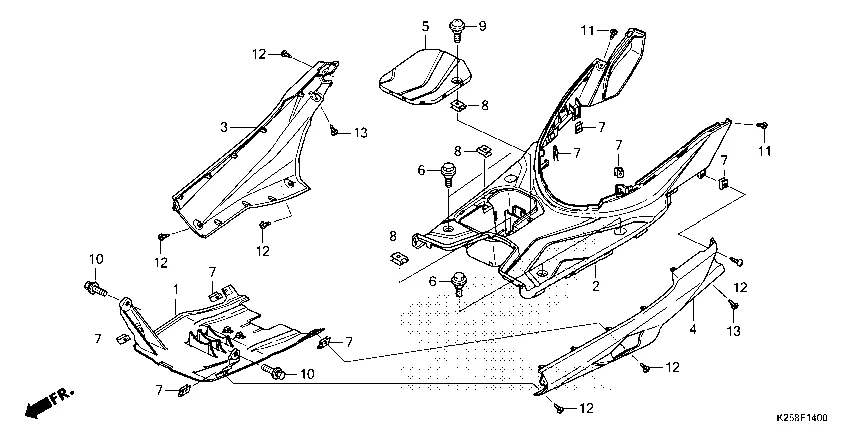

F-14 FLOOR STEP

F-14 FLOOR STEP

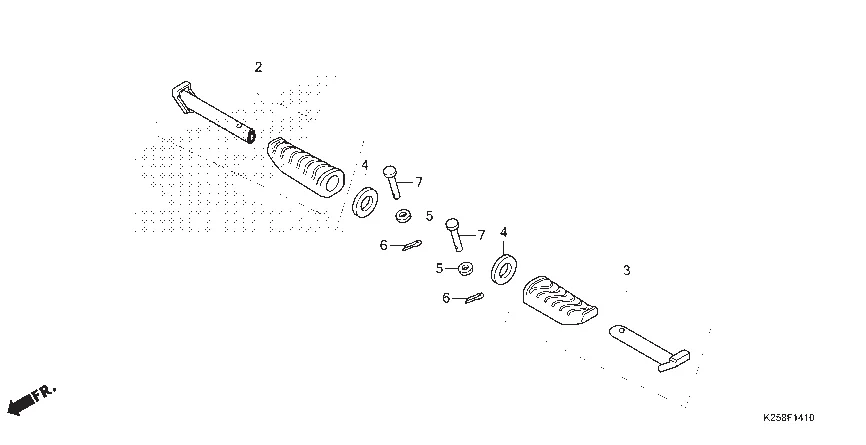

F-14-10 PILLION STEP

F-14-10 PILLION STEP

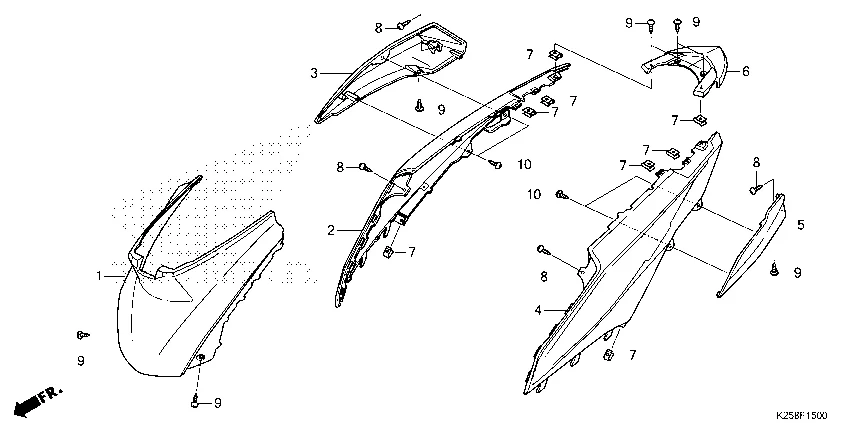

F-15 BODY COVER

F-15 BODY COVER

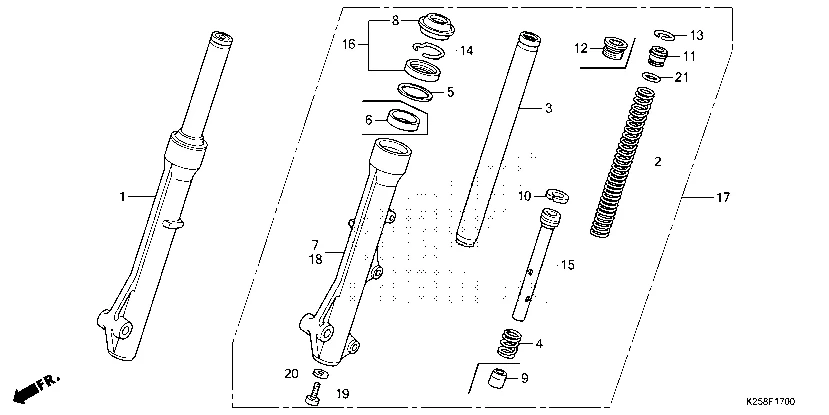

F-17 FRONT FORK

F-17 FRONT FORK

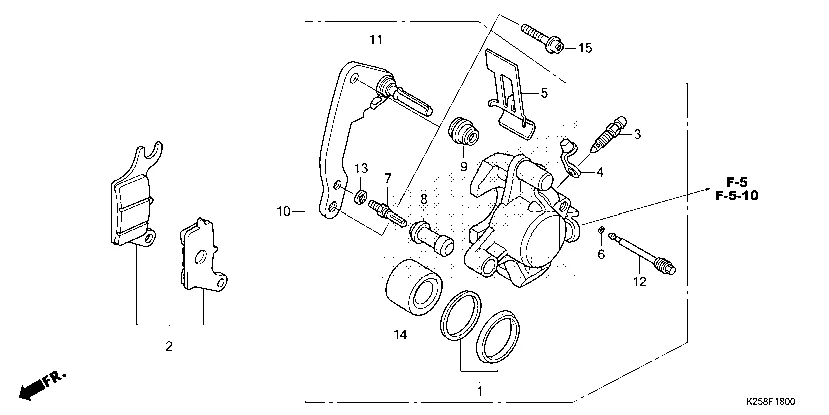

F-18 FRONT BRAKE CALIPER

F-18 FRONT BRAKE CALIPER

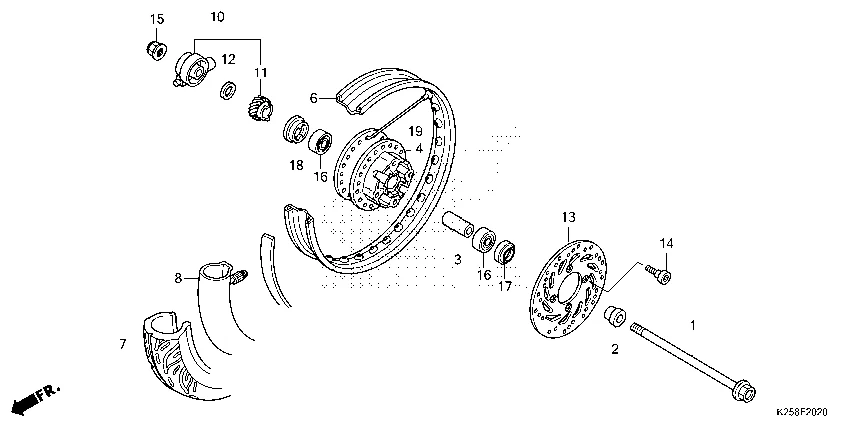

F-20-20 F-20-20

F-20-20 F-20-20

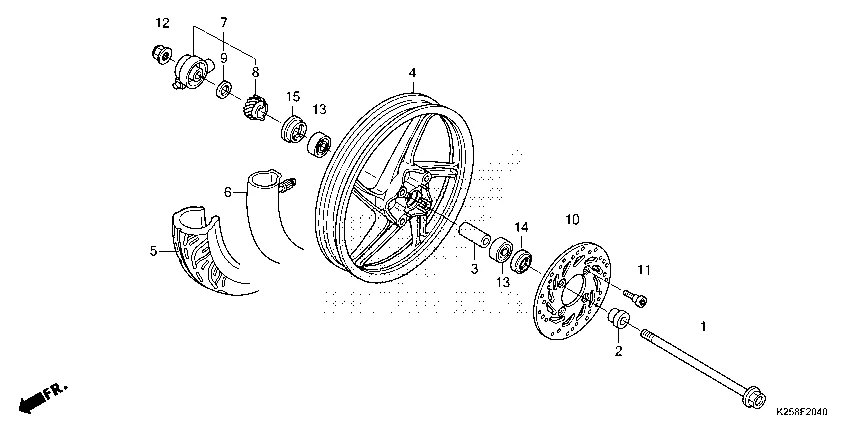

F-20-40 F-20-40

F-20-40 F-20-40

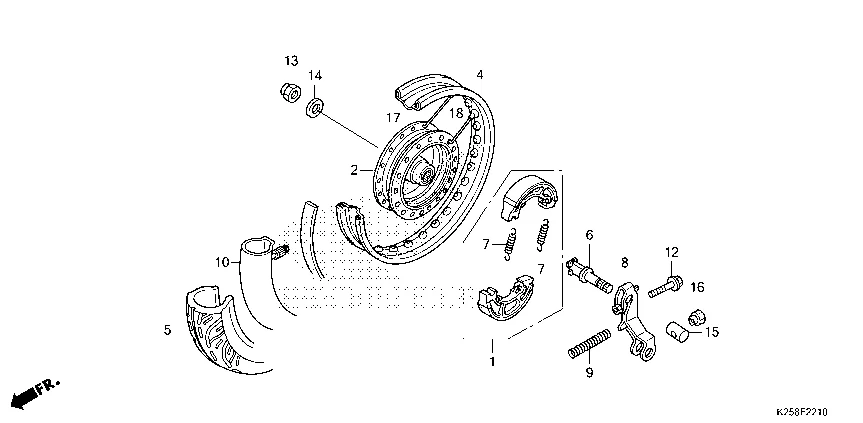

F-22-10 REAR WHEEL(TIPE SPOKE)

F-22-10 REAR WHEEL(TIPE SPOKE)

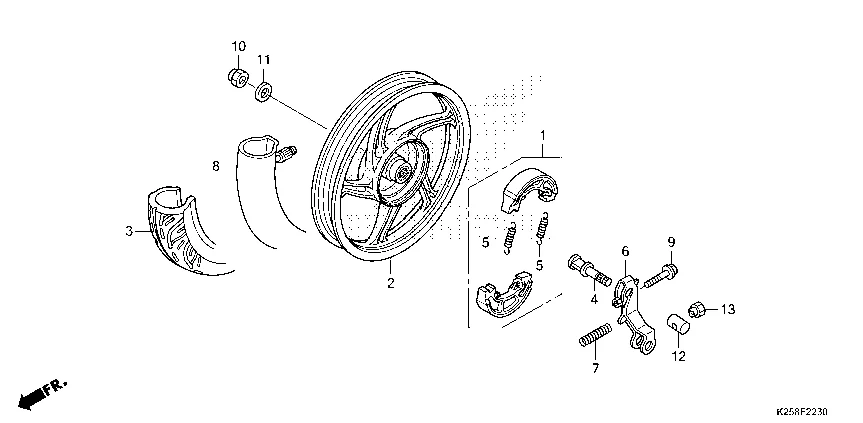

F-22-30 F-22-30

F-22-30 F-22-30

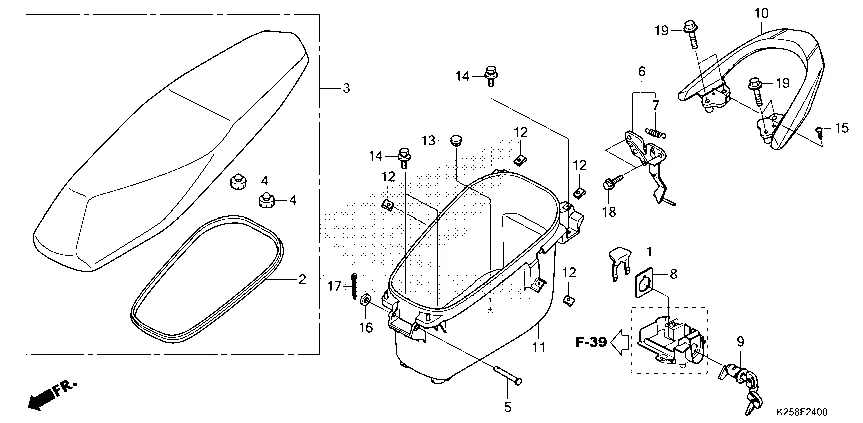

F-24 SEAT

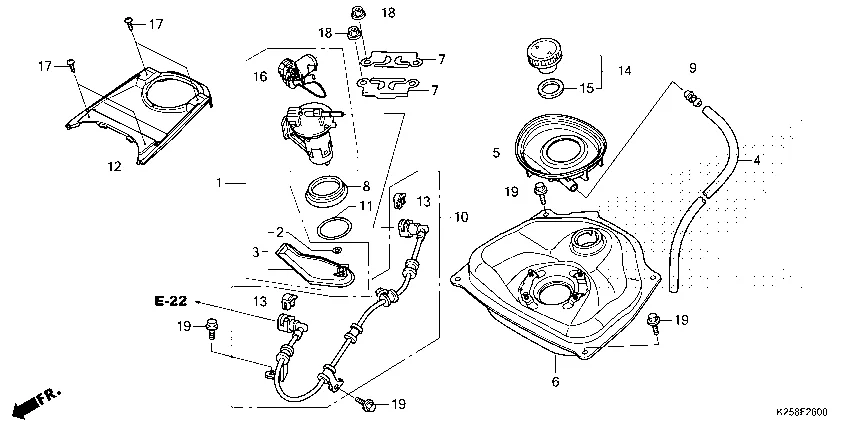

F-26 FUEL TANK

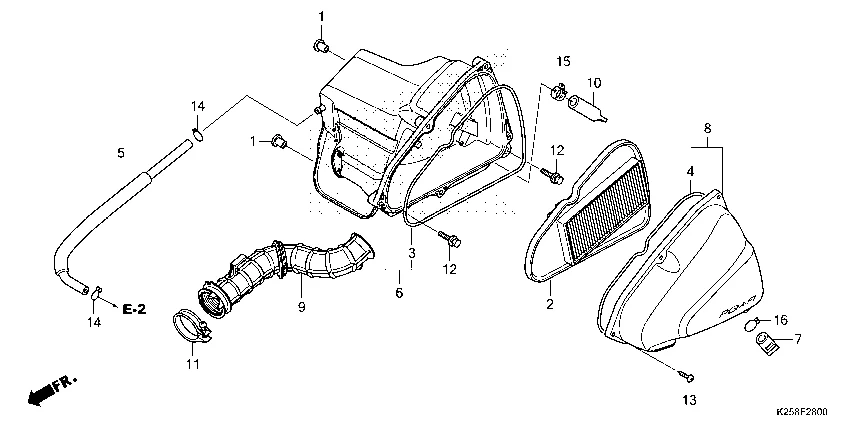

F-28 AIR CLEANER

F-28 AIR CLEANER

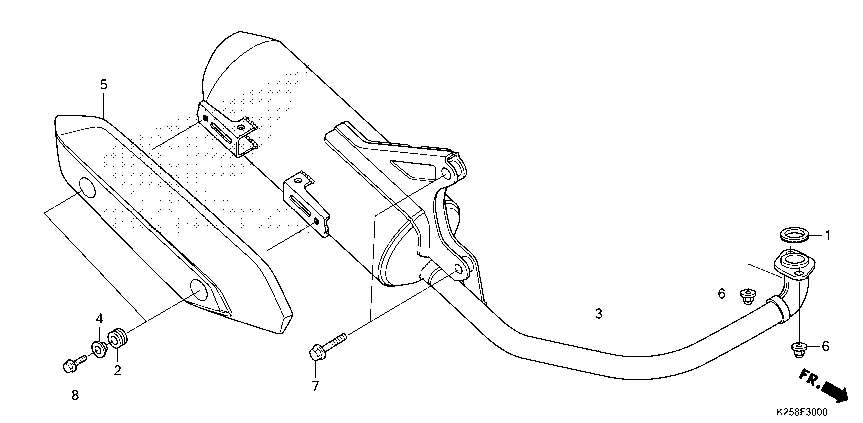

F-30 EXHAUST MUFFLER

F-30 EXHAUST MUFFLER

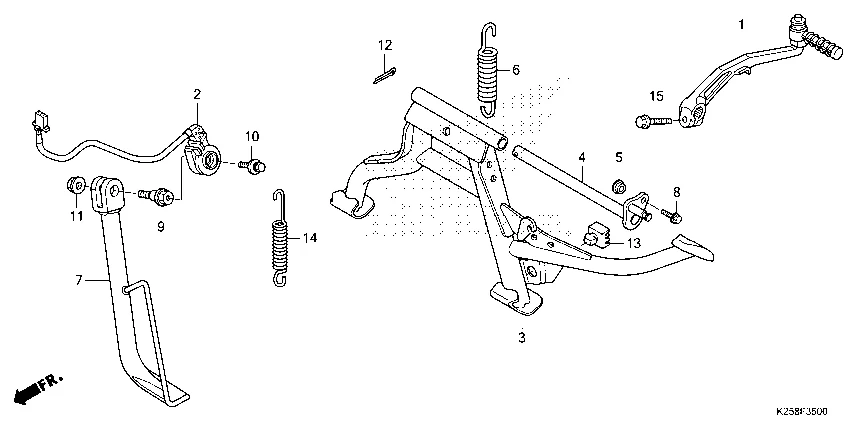

F-35 STAND/KICK PEDAL

F-35 STAND/KICK PEDAL

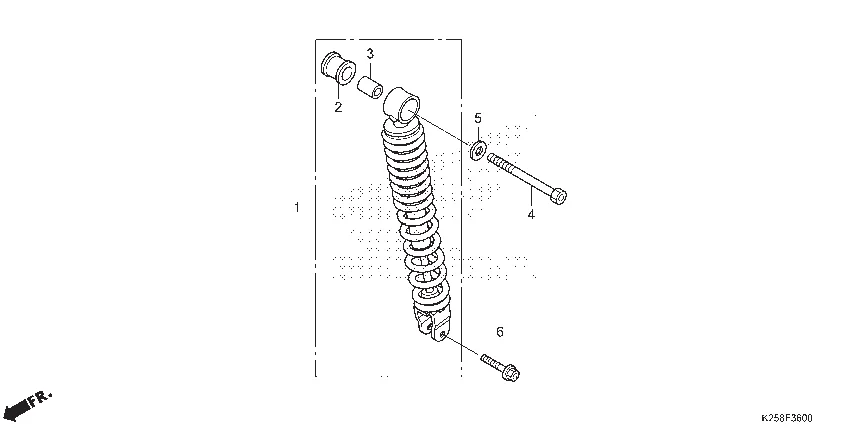

F-36 REAR CUSHION

F-36 REAR CUSHION

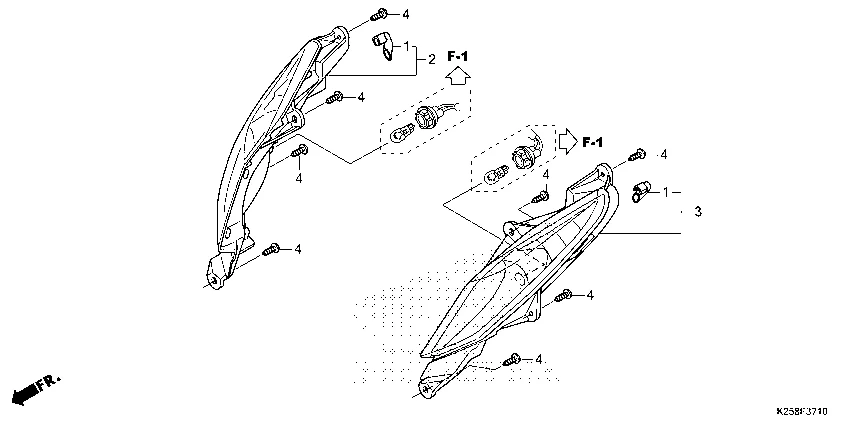

F-37-10 F-37-10

F-37-10 F-37-10

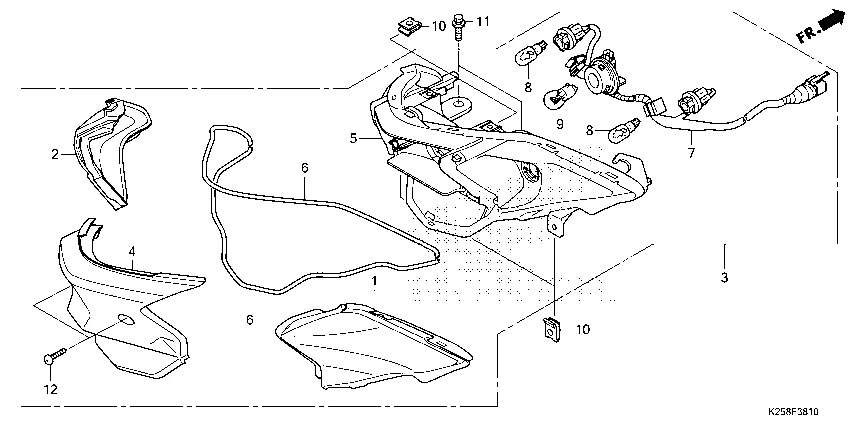

F-38-10 REAR COMBINATION LIGHT

F-38-10 REAR COMBINATION LIGHT

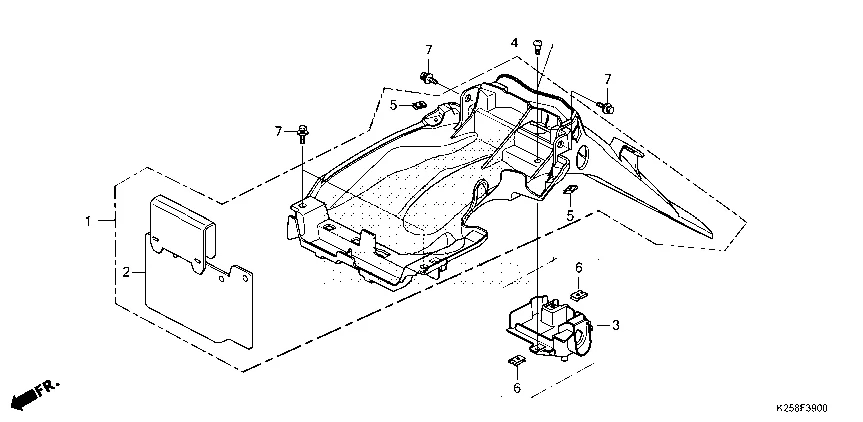

F-39 REAR FENDER

F-39 REAR FENDER

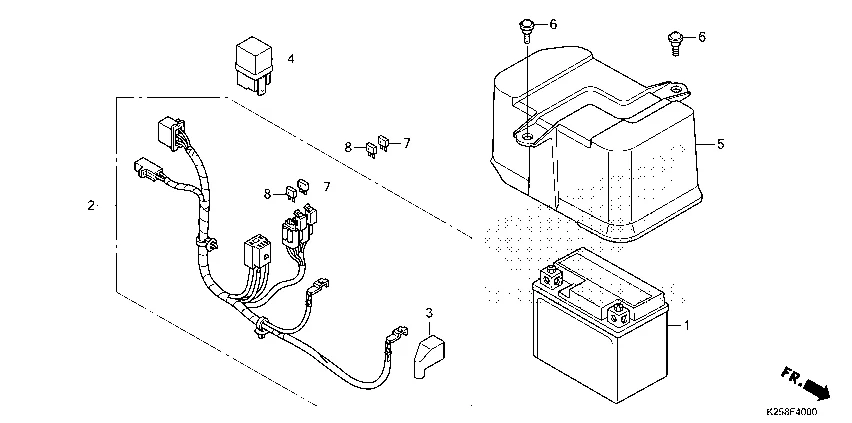

F-40 BATTERY

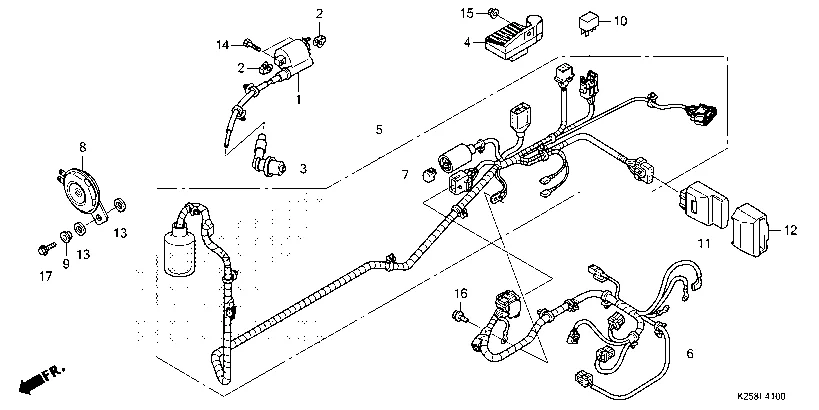

F-41 WIRE HARNESS

F-41 WIRE HARNESS

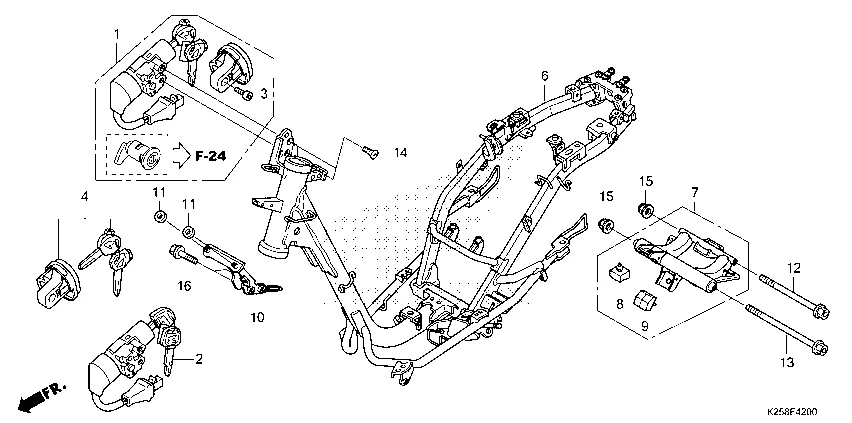

F-42 FRAME BODY

F-42 FRAME BODY

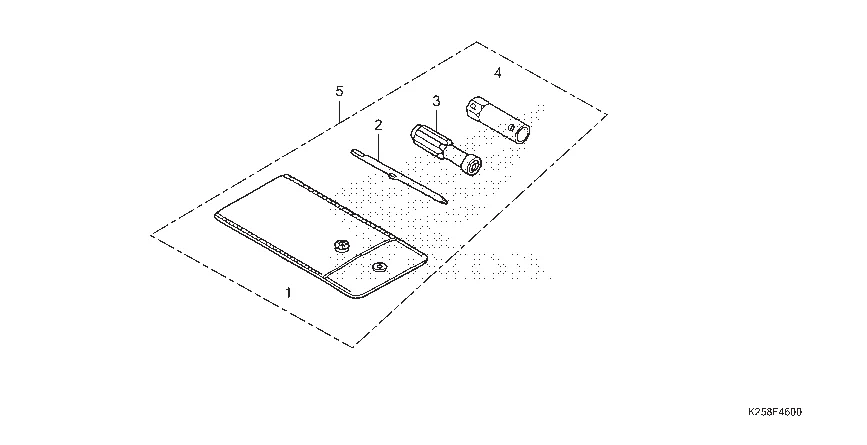

F-46 TOOLS

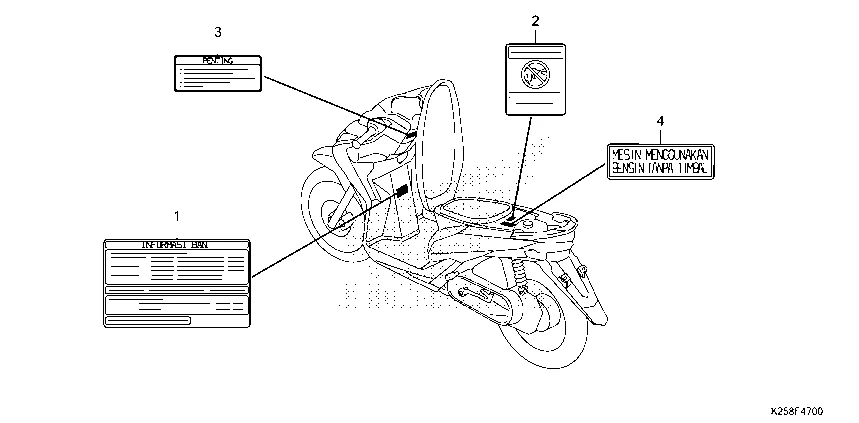

F-47 CAUTION LABEL

F-47 CAUTION LABEL

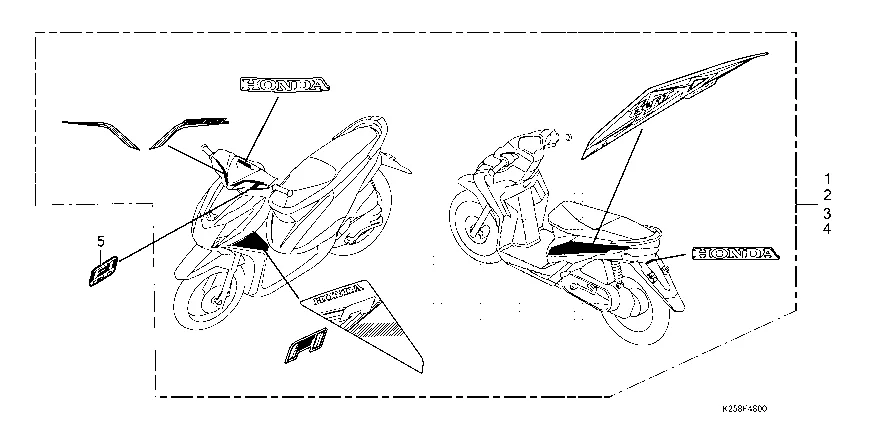

F-48 MARK/STRIPE

F-48 MARK/STRIPE
